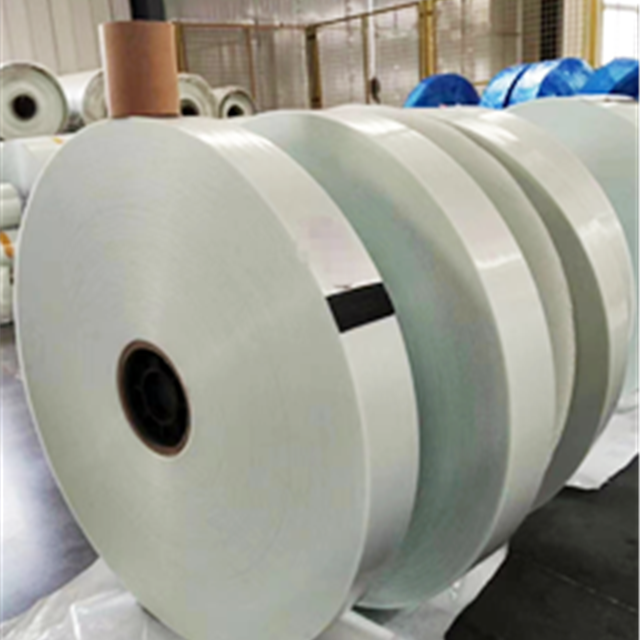

UD tape

• Fiber content range: 50% - 70%
• Width range: 10mm - 650mm
• Thickness range: 0.15mm - 0.40mm
• GSM range: 240g/㎡ - 600g/㎡
• Length available: 1000m/roll, 1500m/roll, 2000m/roll, other lengths can be customized

Main specifications and parameters of UD tapes:

• Fiber content range: 50% - 70%

• Width range: 10mm - 650mm

• Thickness range: 0.15mm - 0.40mm

• GSM range: 240g/㎡ - 600g/㎡

• Length available: 1000m/roll, 1500m/roll, 2000m/roll, other lengths can be customized

• Inner core available: 3 inches, 6 inches

• Resin types: PP, PE, PA6, PC, etc

• Fiber type: glass fiber, carbon fiber, aramid fiber, basalt fiber, etc

• Color available: natural color, black, other colors can be customized

Note: other performance such as flame retardant, aging resistance, low odor, etc. are available according to clients’ requirement




UD Tape Performance Datasheet

Type

aterials

Fiber Content

Density

g/cm3

Thickness

mm)

Tensile Strength

Mpa)

Tensile Modulus

Gpa)

Elongation at Break

GP60

GF/PP

60%

1.54

0.20-0.4

820

27

4.5%

GP65

GF/PP

65%

1.58

0.25-0.4

900

30

4.3%

GP70

GF/PP

70%

1.63

0.25-0.35

1000

34

4.0%

CP50

CF/PP

50%

1.25

0.2-0.3

1300

85

1.5%

GE55

GF/HDPE

55%

1.52

0.25-0.4

700

24

4.8%

GE60

GF/HDPE

60%

1.56

0.25-0.4

830

27

4.6%

GE65

GF/HDPE

65%

1.63

0.25-0.4

980

30

4.5%

GA50

GF/PA

50%

1.55

0.25-0.4

780

24

4.5%

GA60

GF/PA

60%

1.67

0.25-0.4

920

29

4.2%

GA65

GF/PA

65%

1.72

0.25-0.4

1080

33

4.0%

CA50

CF/PA

50%

1.40

0.2-0.3

1400

90

1.5%



Note:

The above performances are obtained by using the internal testing instruments and environmental conditions of Suijin, on the basis of the relevant standards, which are only used as a reference for customers when designing and using. It is recommended that customers conduct relevant inspection or test on product performance according to specific use requirements.
